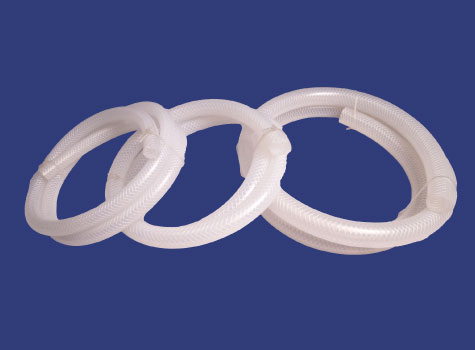

Platinum Cured Silicone Hose Reinforced with Polyester Braiding
Platinum cured silicone hose are reinforced with a layer of Polyester braiding. This type of hose is preferred in pressurized application for transferring liquid and semi liquid products. Platinum cured silicone braided hose is manufactured under stringent quality parameters to have great flexibility and minimum bend radius.
Applications
Available Size
If required available with SS316 tri clover end
| Size in MM (ID X OD) | Size in Inch (ID) | *Max Working Pressure (Bar) | *Min Burst Pressure (Bar) | Min Bend Radius (MM) | Vacuum Rating in MM HG |
| 6 x 13 | 1/4" | 10.0 | 30 | 50 | NA |
| 9 x 16 | 1 1/32" | 9.0 | 27 | 50 | NA |
| 12 x 20 | 1/2" | 7.0 | 21 | 80 | NA |
| 16 x 24 | 5/8" | 7.0 | 21 | 90 | NA |
| 19 x 27 | 3/4" | 6.0 | 18 | 110 | NA |
| 25 x 35 | 1" | 4.0 | 12 | 160 | NA |
| 32 x 42 | 1 1/4" | 3.0 | 9 | 200 | NA |
| 37 x 47 | 1 1/2" | 2.5 | 8 | C/P | NA |
| 50 x 62 | 2" | 2.0 | 6 | C/P | NA |
