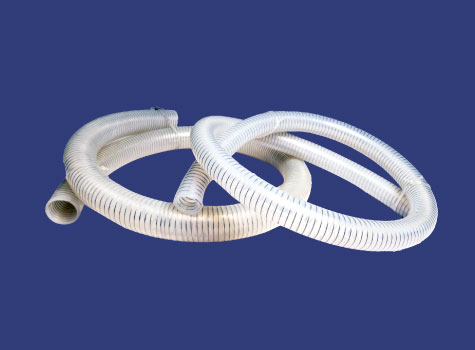

Platinum Cured Silicone Hose Reinforced With Polyester Braiding And SS 316L Helical Wire
Platinum cured silicone hose reinforced with polyester braiding and SS 316L helical wire has better flexibility with high pressure resistance. As compared to other hoses, it has burst pressure rating along with high vacuum resistance. This product is suitable in pressurized fluid transfer application.
Applications
Available Size
| Size in MM (ID X OD) | Size in Inch (ID) | *Max Working Pressure (Bar) | *Min Burst Pressure (Bar) | Min Bend Radius (MM) | Vacuum Rating in MM HG |
| 6 x 13 | 1/4" | 12.5 | 49.0 | 60 | 760 |
| 9 x 16 | 1 1/32" | 12.5 | 49.0 | 70 | 760 |
| 12 x 20 | 1/2" | 11.5 | 45.0 | 70 | 760 |
| 16 x 24 | 5/8" | 11.0 | 36.0 | 85 | 760 |
| 19 x 27 | 3/4" | 10.0 | 34.5 | 95 | 760 |
| 25 x 35 | 1" | 9.5 | 34.5 | 140 | 760 |
| 32 x 42 | 1 1/4" | 8.5 | 28.0 | 150 | 500 |
| 37 x 47 | 1 1/2" | 8 | 30.0 | 175 | 500 |
